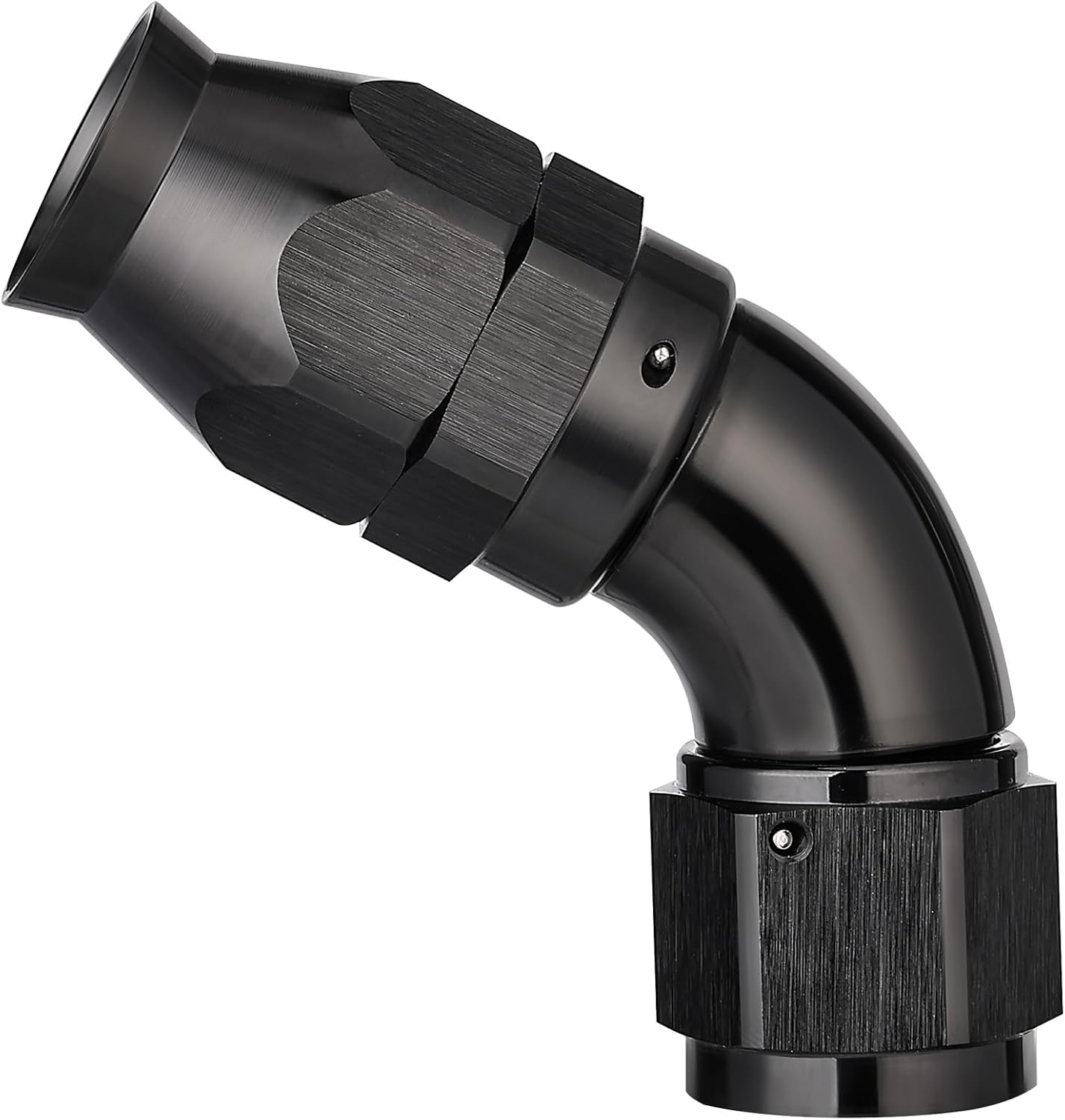

EVIL ENERGY 10AN 60 Degree PTFE One Piece Full Flow End Hose Fitting Aluminum Black

Overview

• Size : 10AN
• Material : Aluminum
• Brand : EVIL ENERGY
• Color : Black
• Connector Type : Flare

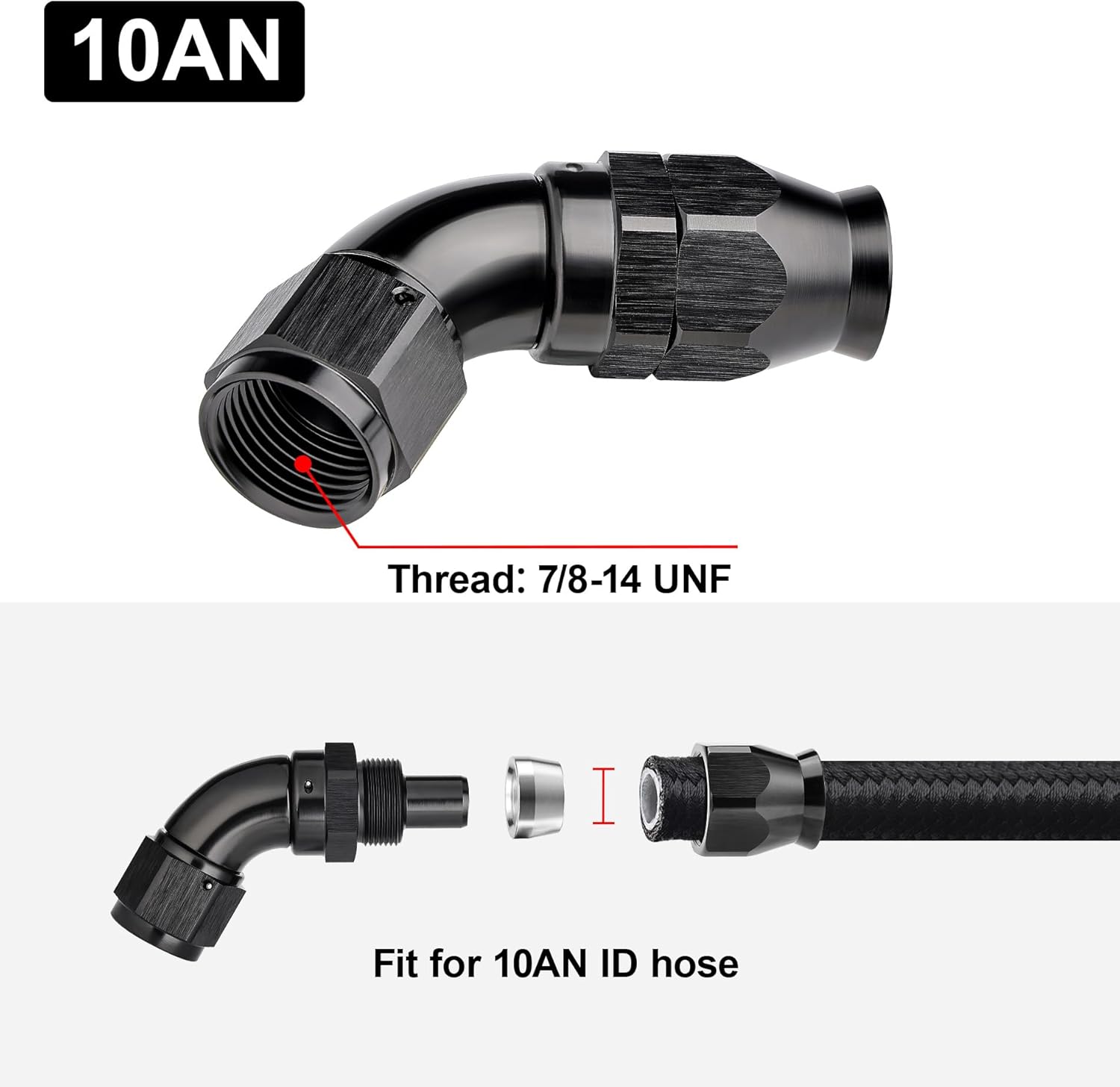

• Thread Size : 7/8-14 UNF
• Exterior Finish : Black Anodized
• Thread Type : UNF
• Manufacturer : Speedwow Tuning

About this item

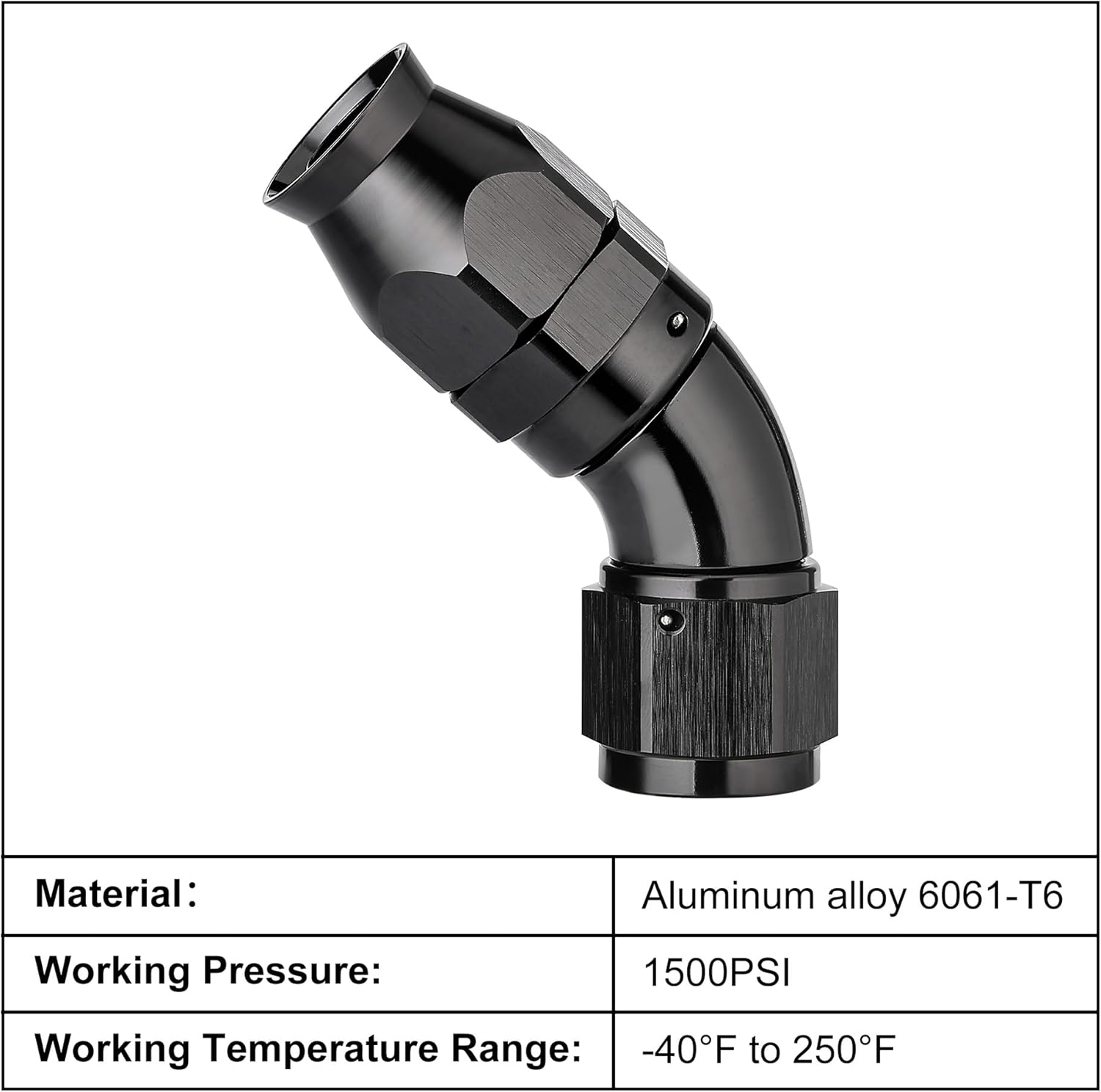

• [Product Size & Parameter] Size: 10AN. Thread Size: 7/8-14 UNF. Working Pressure: 1500PSI. Working Temperature Range: -40°F-250°F. Angle: 60 Degrees. Note: Please verify the hose size before purchase.

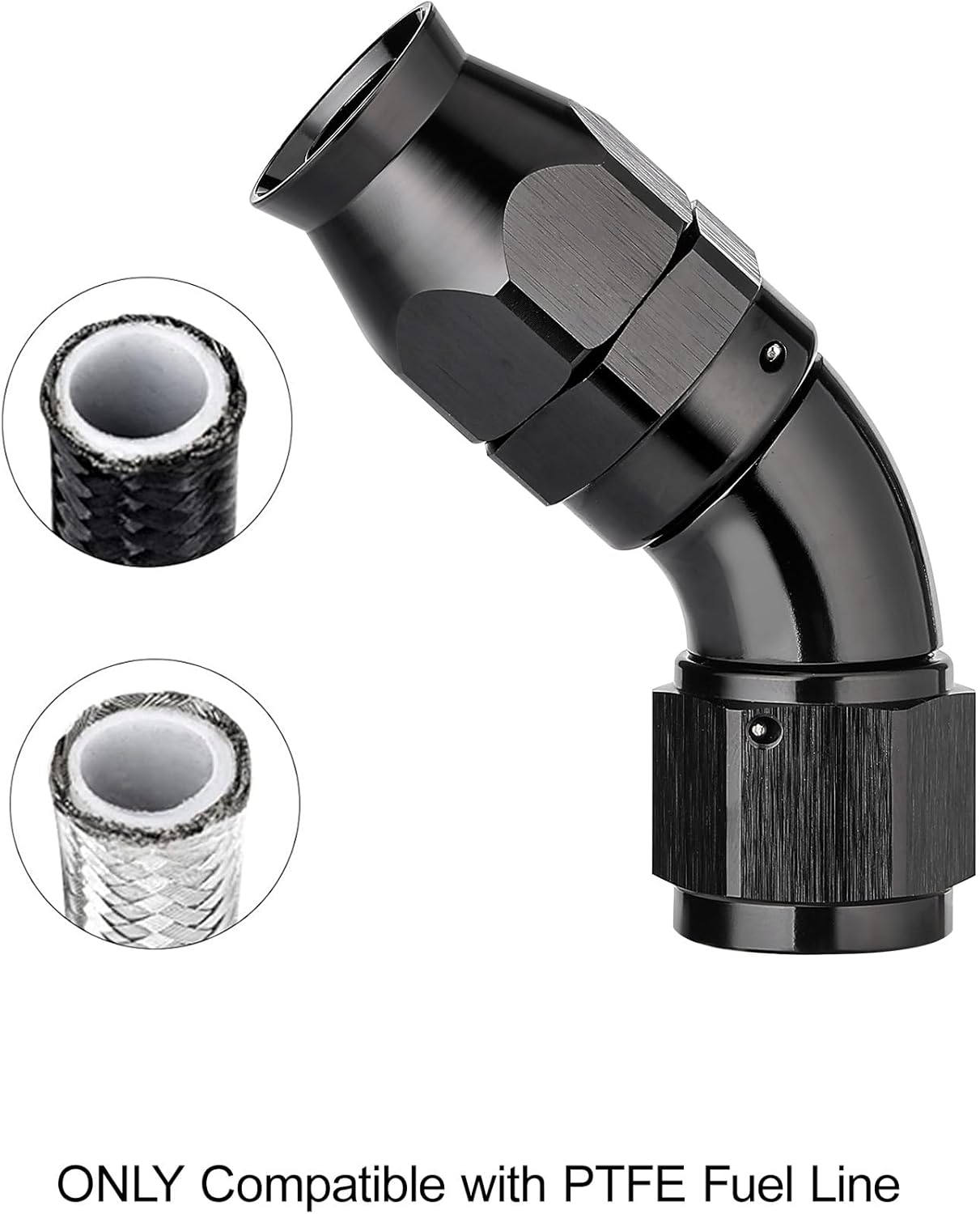

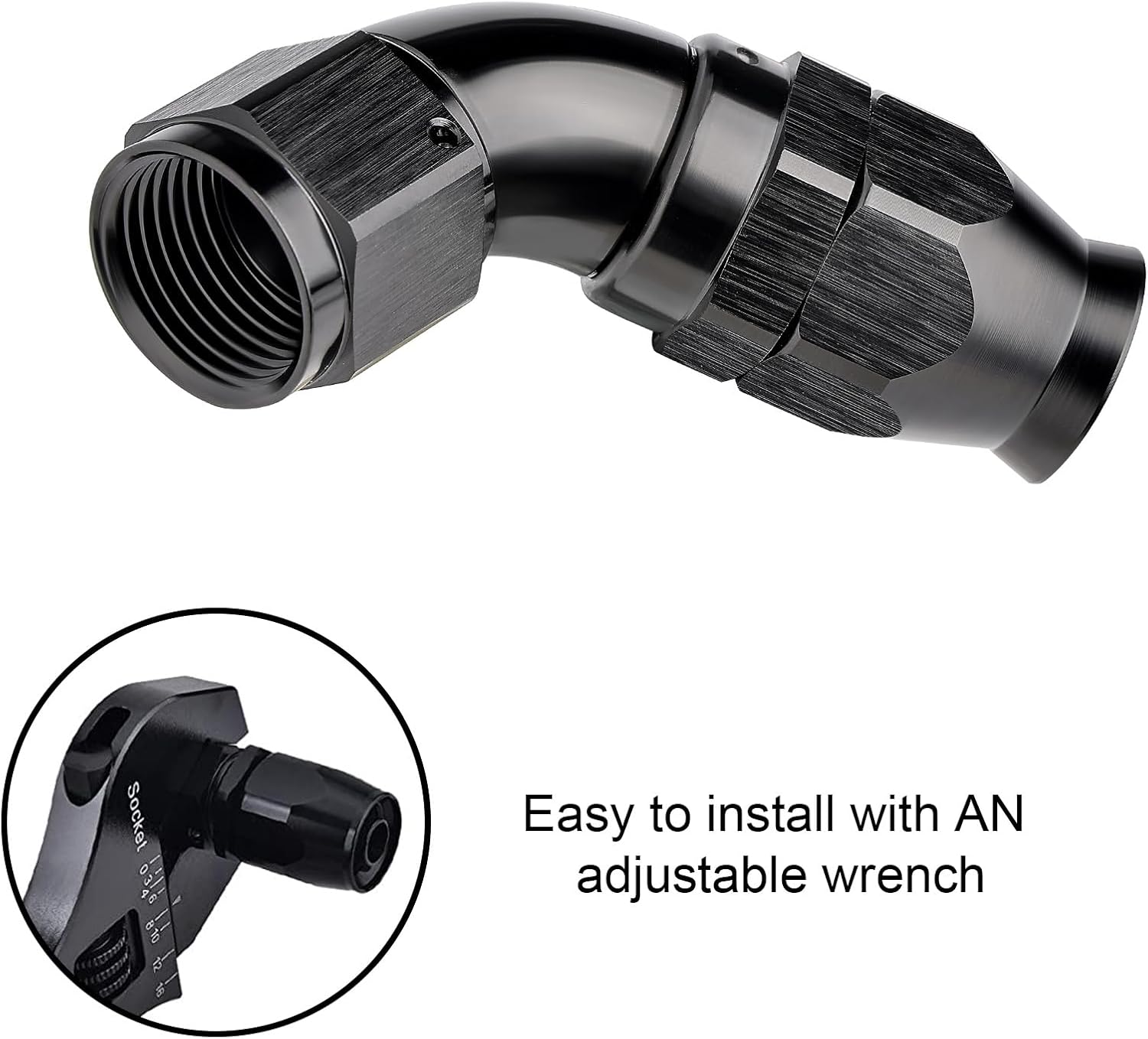

• [Application] These fittings are ONLY used with PTFE fuel lines for E85, alcohol, nitro, clutch, nitrous, power steering, oiling, hydraulics, and vacuum applications. A 360° swivel design allows for easy assembly.
• [Full Flow Hose End] Precision CNC machined hose end fitting features excellent wall thickness and achieves uninterrupted flow.
• [Anti-Leak Seal] At the AN side, there is a 37-degree flare angle to form a complete seal without applying an extra sealing compound.

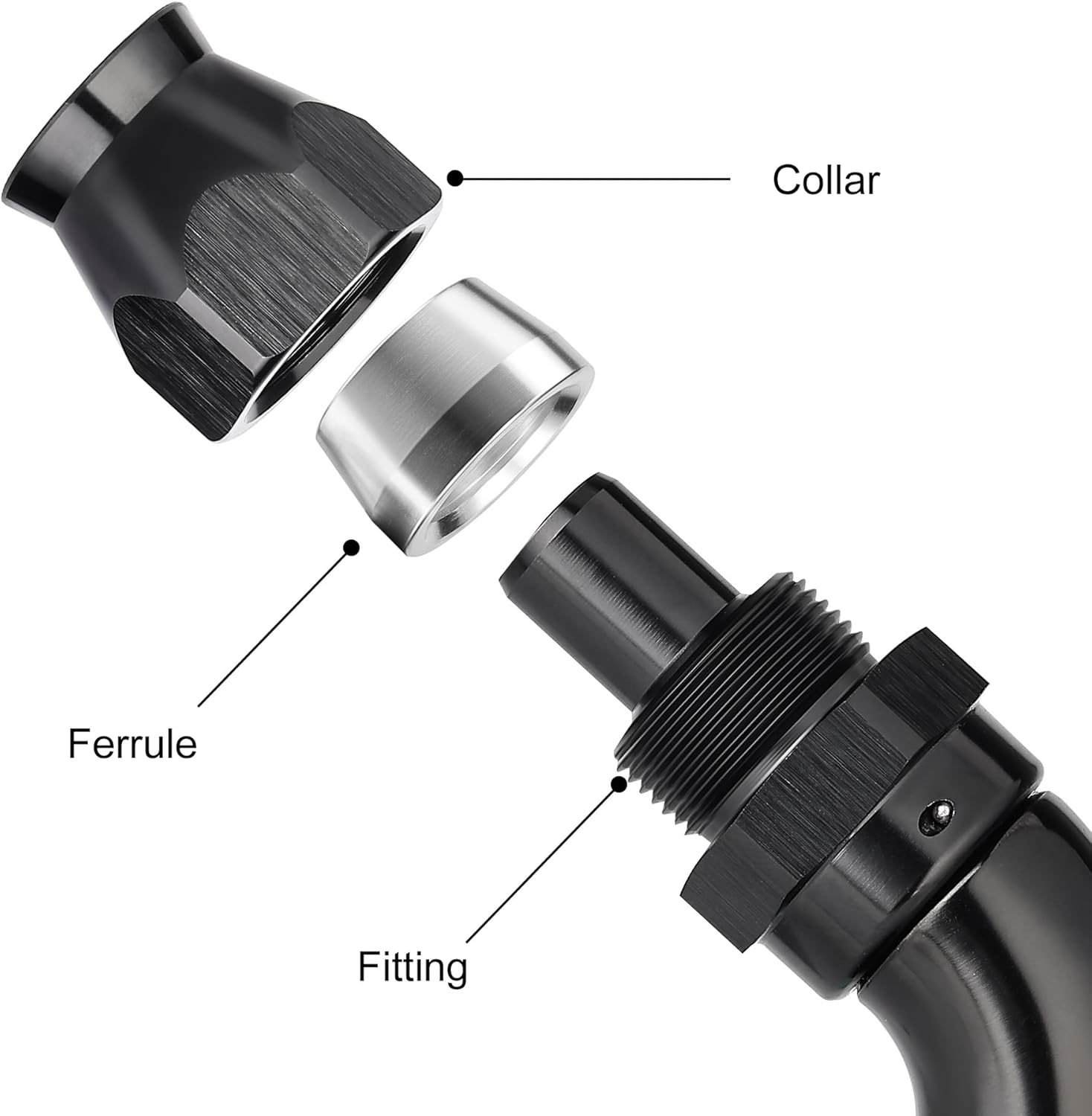

• [Built to Last] The one-piece PTFE hose end fitting is made from lightweight 6061-T6 aluminum alloy, and a black anodized finish on the surface increases durability, anti-corrosion, and wear resistance.
