Heavy Duty 48V 4 Terminal Solenoid Heavy Duty 48V Solenoid Relay Switch Replacement For Club Car EZGO Yamaha Electric G19 Power Drive #586 Series Replace JR1-H1950-00 73231-G01

About this item

• ✦ 【Specification】 48 Volt / 48V Solenoid; 48V 4 Terminal Solenoid Replaces OEM Number(s): Replacement For EZGO E-Z-Go Part 73231G01, 73231-G01 48V, 4 Terminal, 200 Amp, JR1-H1950-00

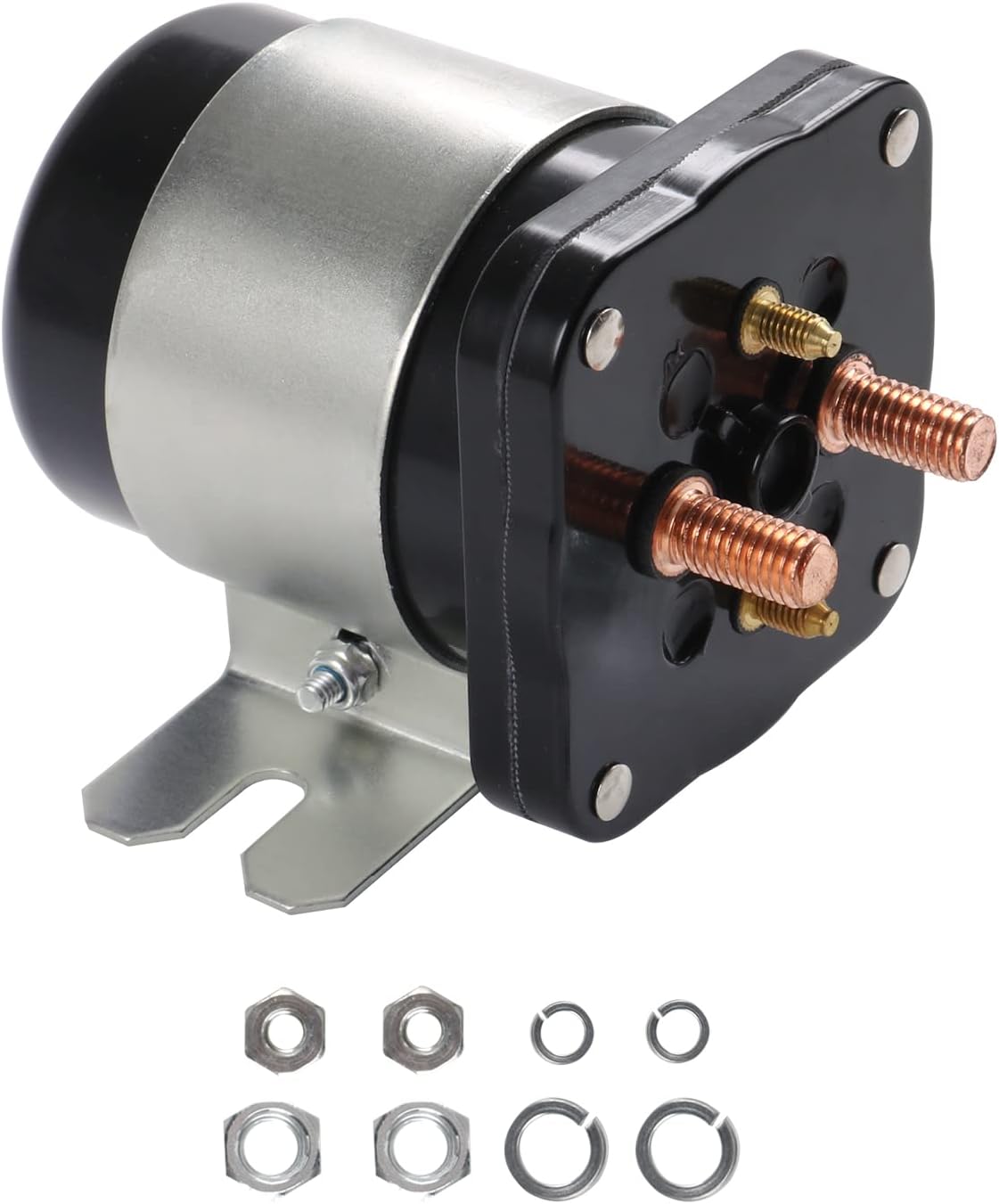

• ✦ 【Include】Package Include: 1 PC 4 terminal Heavy-duty 48 V solenoid
• ✦ 【Compatible with 】Replacement For Club Car Electric 1995-1998 and Power Drive 101883601 1018836-01; Replacement For EZGO Electric Golf Cart Shuttle 2 to 6 passenger series 950 series Titan and XI-875 electric 1995 and newer 73231G01 73231-G01; Replacement for Yamaha Electric 48 volt G19 Golf Cart JR1-H1950-00 Motrec 486222
• ✦ 【Specification】48V 4 Terminal Heavy Duty Solenoid with Silver Contacts 586-120111 Series Replacement for Club Car E-Z-GO Yamaha Electric G19 Power Drive 4 Terminal #586 Series
• ✦ 【Application For】Compatible with Club Car Electric 1995-1998 and Power Drive
• ✦ 【Application For】Compatible with Yamaha Electric 48 volt G19 Golf Cart 1996 to 2001 and 2002 to 2014 Yamaha 48 volt electric models G22, G23 and G27 and G29 YDRA The Drive
• ✦ 【Application For】Compatible with E-Z-GO Shuttle 2 to 6 passenger series 950 series Titan and XI-875 electric 1995 and newer

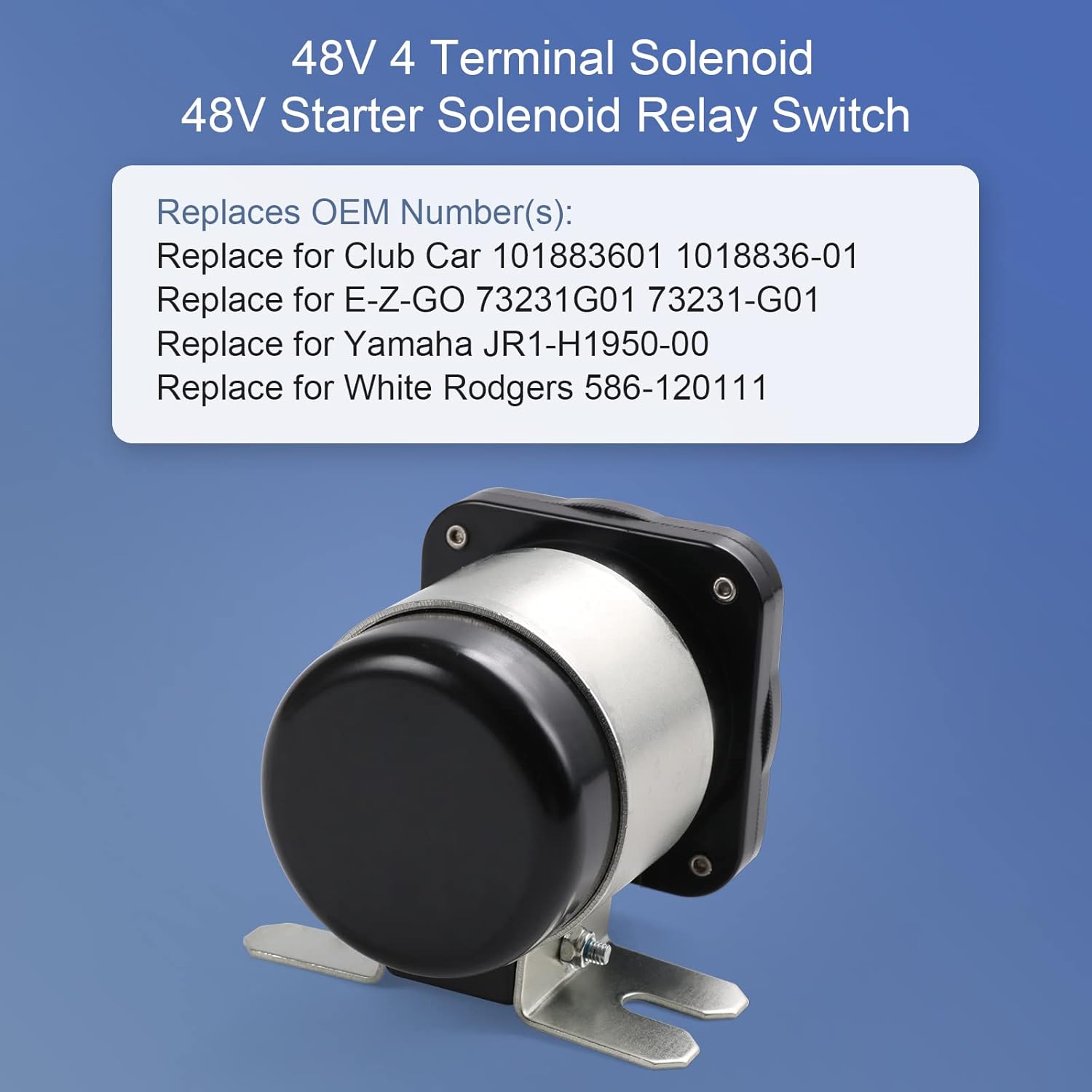

• ✦ 【Application For】 Replacement For Club Car 101883601 1018836-01 Replacement For EZGO 73231G01 73231-G01 Replacement For Yamaha JR1-H1950-00 Replacement For Motrec 486222 Replacement For White Rodgers 586-120111

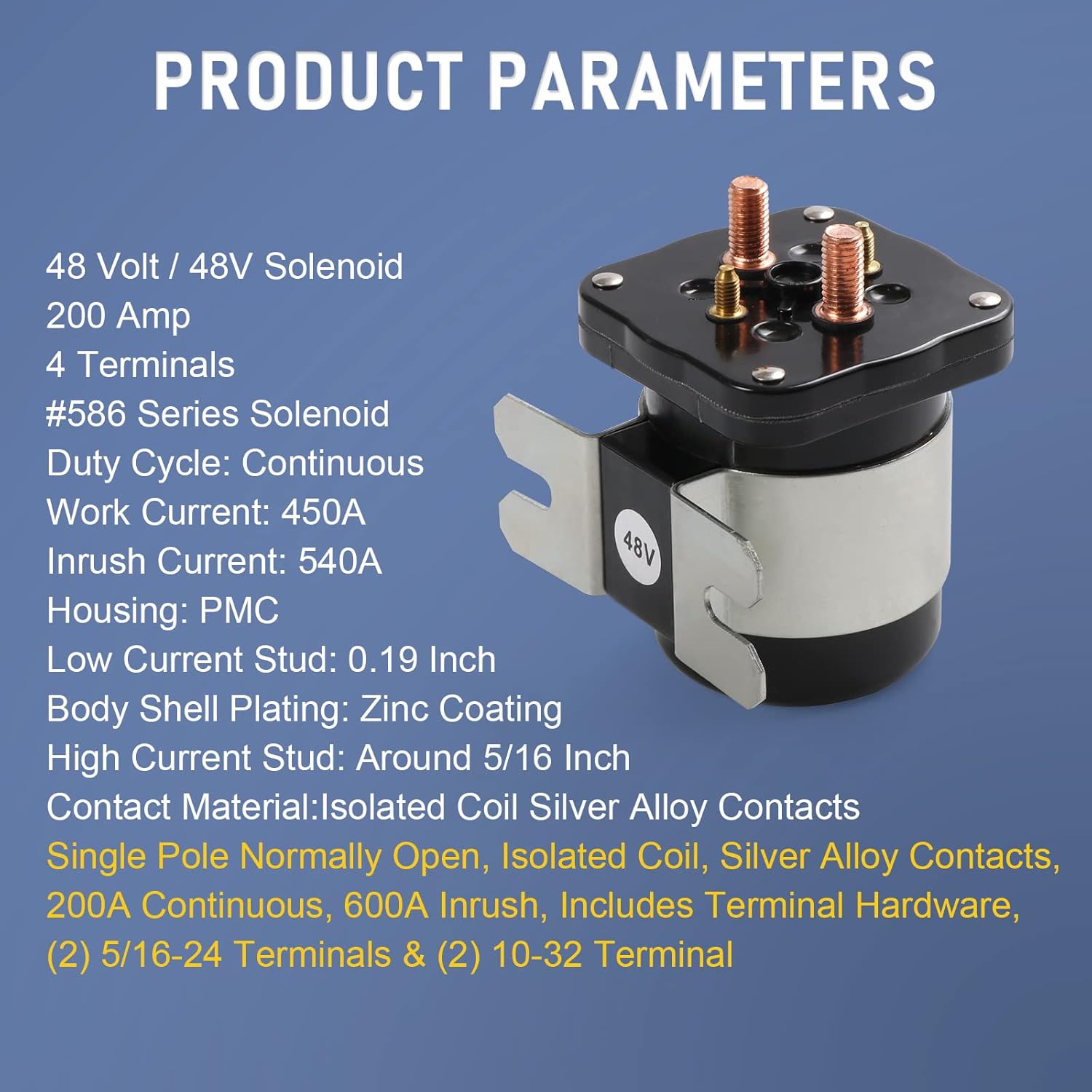

• ✦ 【Spec】48 Volt / 48V Solenoid 200 Amp 4 Terminals #586 Series Solenoid Duty Cycle: Continuous Work Current: 450A Inrush Current: 540A Housing: PMC High Current Stud: Around 5/16 Inch Low Current Stud: 0.19 Inch Body Shell Plating: Zinc Coating Contact Material:Isolated Coil Silver Alloy Contacts Single Pole Normally Open, Isolated Coil, Silver Alloy Contacts, 200A Continuous, 600A Inrush, Includes Terminal Hardware, (2) 5/16-24 Terminals & (2) 10-32 Terminal
• ✦ 【one year service 】All LDMINDA Parts comes complete with one year service. If the part ever fail on your vehicle，pls contact us for a replacement
