M Series Battery Switch, Huazu 300A Marine Battery Cut Off Switch for Car Vehicle RV Trailer

Overview

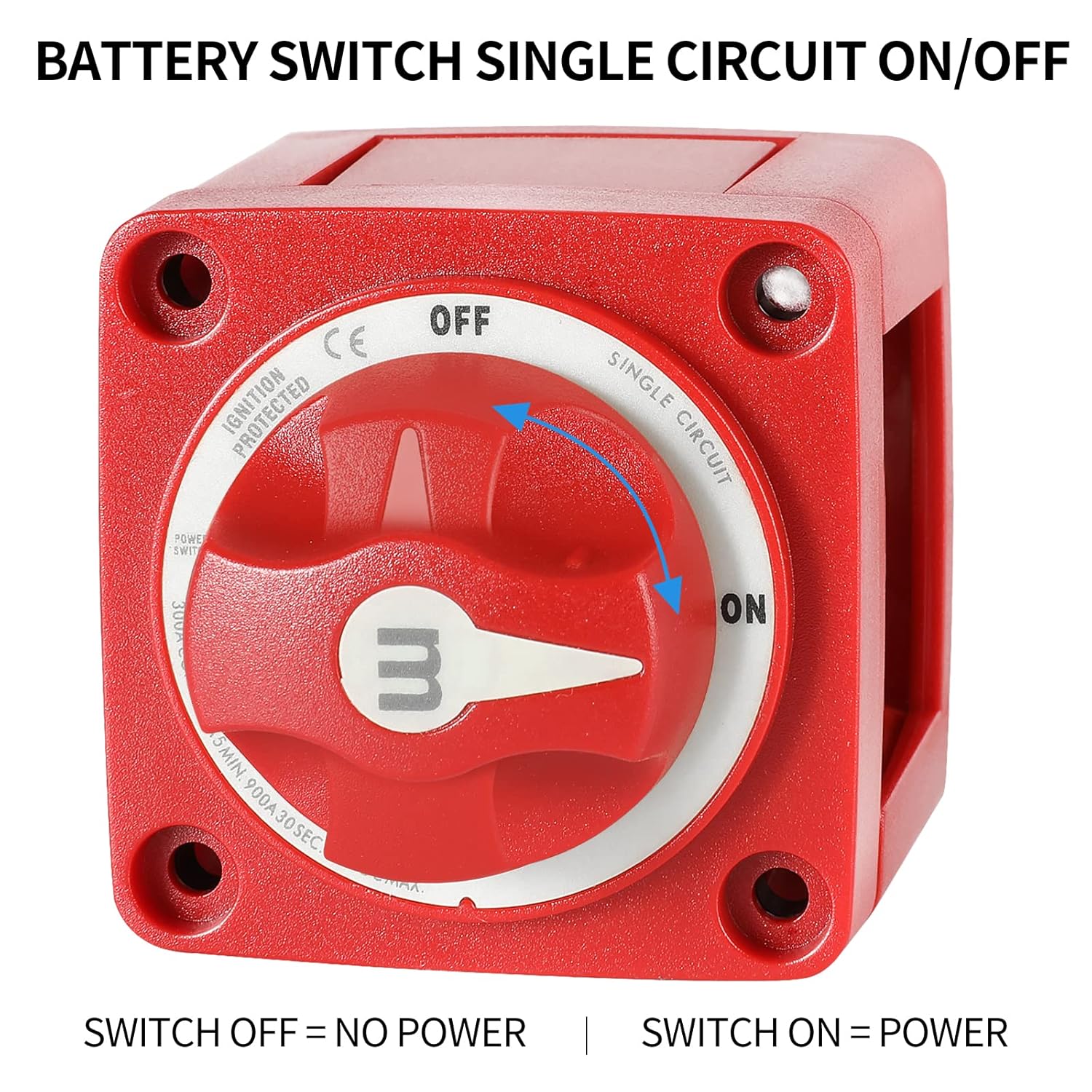

• Operation Mode : ON-OFF
• Current Rating : 200 Amps
• Operating Voltage : 48 Volts
• Contact Type : Normally Closed
• Connector Type : Plug In
• Brand : Huazu
• Terminal : Screw

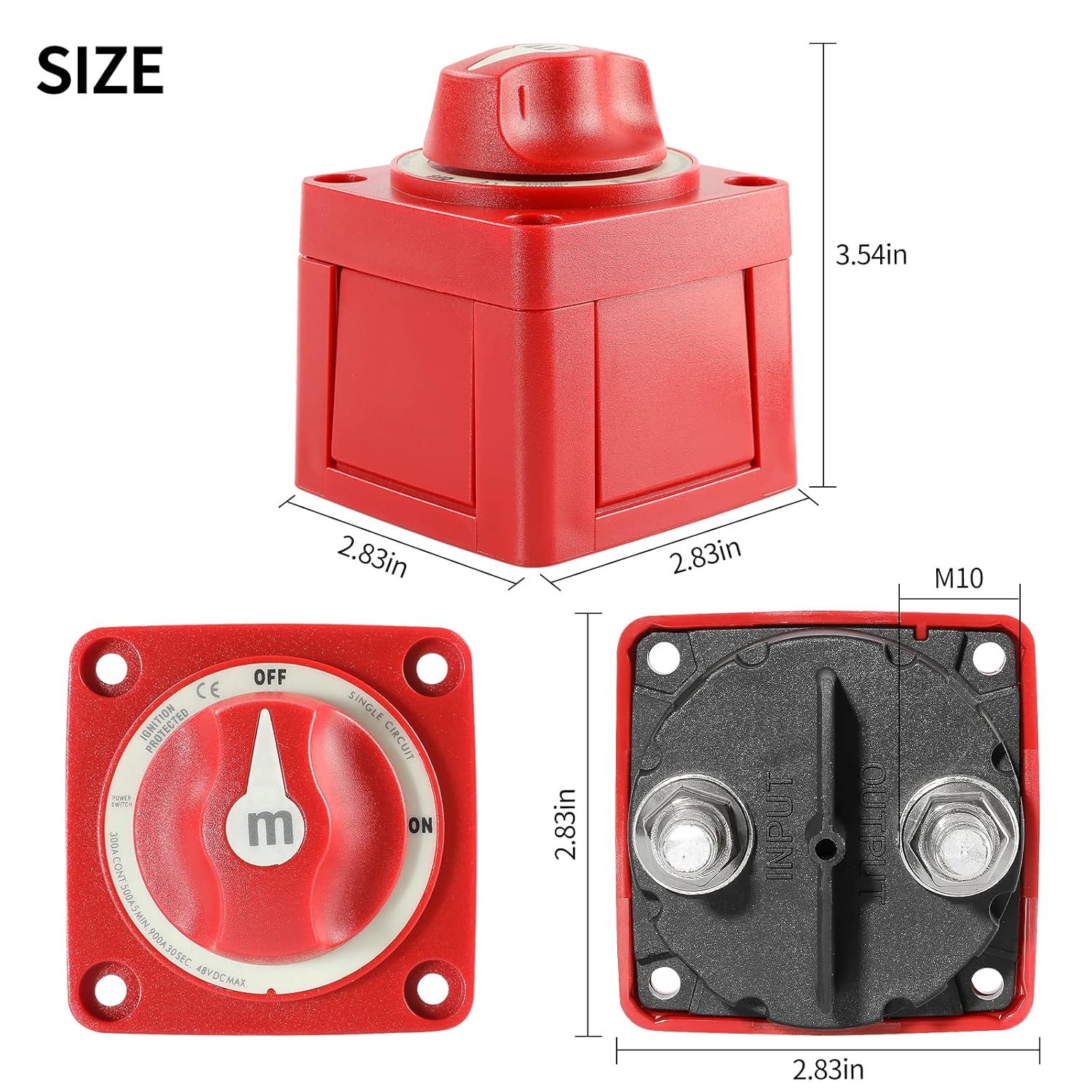

• Item dimensions L x W x H : 2.95 x 2.95 x 3.54 inches
• Mounting Type : Panel Mount
• Contact Material : Brass
• Switch Type Ignition Switch : Material 黄铜
• : Switch Type Ignition Switch
• : Material 黄铜

About this item

• FUNCTION: This M-Series Battery Switch with On/Off position acts as a power cut off, eliminating any power drain from the battery pack. Disconnect the batteries safely when the vehicle or boat is not in use.
• DESIGN: Make-before-break contact design allows switching between battery banks without power interruption.
• IGNITION PROTECTION: The battery disconnect switch has a crank rating of 900A for 30 seconds, 500A for 5 minutes, and a continuous rated current of 300A. Maximum Operating Voltage: 48V.

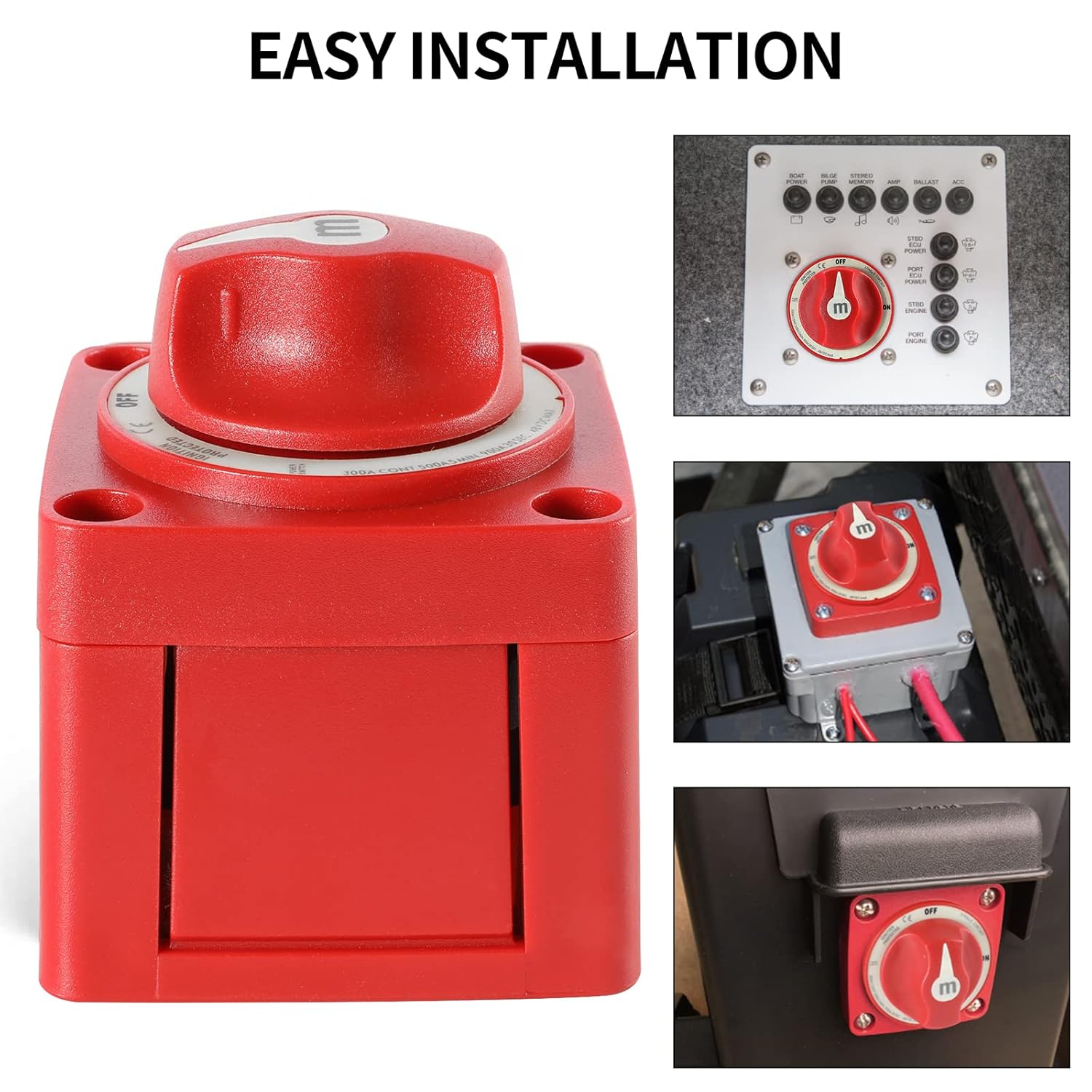

• ABOUT MOUNTING: This battery switch can be safely mounted on gasoline powered boats, the chassis design allows for surface, front panel or rear panel mounting.
• WIDE APPLICATION: This red battery cut off switch is ideal for RV, travel trailer, marine, boat, camper, truck, ATV, UTV, etc.
